After looking at a few photos of D*A*M Tone Bender MKIII innards, I think this is the standard layout used on most (on 0.15 inch vero).

I haven't listed transistors used etc, as the internet has more than enough info on this, and if you have found this page, I'm sure you are quite aware of positive ground circuits and what PNP germanium transistors are.  Apart from that, David Main uses a variety of different transistors in his various MKIII builds.

If you want to keep the D*A*M look, put the links under the board - that confused me for a while trying to work out where the signal was going.

D*A*M FUZZSOUND MKIII  -  0.15" VERO LAYOUT

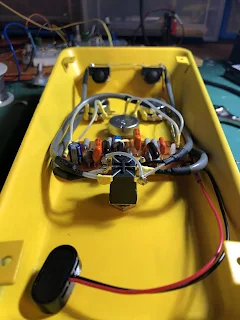

This layout is a row smaller, as it's a slightly better fit in the enclosure shown below.  Dotted lines are under the board.
