MARSHALL: SupaFuzz, 0.15" Vero Layout

This is the original 1968 0.15" vero layout for the Marshall SupaFuzz (which may be disputed by some).

The cuts may not be in the exact positions as the original, but no matter...  same with Filter pin 3 connection.  This may be on the other side of the board, but that makes no real difference.  I have not included shielding, but that's easy enough to work out from the photo.


MARSHALL SUPAFUZZ - VERO LAYOUT

MARSHALL SUPA FUZZ - VERO LAYOUT


MARSHALL SUPAFUZZ - ORIGINAL BOARD


MARSHALL Supa Fuzz - original board

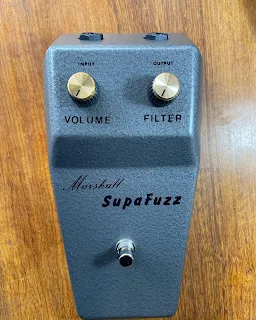

MARSHALL SUPAFUZZ - ON THE BENCH
