DALLAS: Rangemaster, Tag Board Layout

A bit of a classic - well one of the first guitar effects really, the Dallas Rangemaster.  A nice simple one for a quick build using leftover tag board.

In theory there is room to fit the output cap on the board too, but I liked the straight lines of the components.

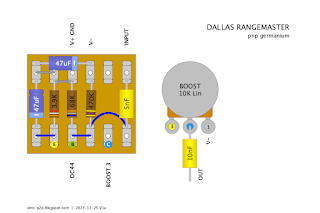

DALLAS RANGEMASTER TREBLE BOOSTER - TAG BOARD LAYOUT

DALLAS RANGEMASTER TREBLE BOOSTER - TAG BOARD LAYOUT
