SUNN: Sunn Buzz SB-1G

The Sunn Buzz is an odd little fuzz from the mid-to-late sixties.   It's silicon and runs on a single AA battery (1.5v) with a topology vaguely similar to the Fuzztone.  The design was fairly questionable - the fuzz box had to be plugged into the amp input jack, which would have been fairly limiting.

Photos and discussion on FreeStompboxes.

SUNN BUZZ SB-1G - VERO LAYOUT

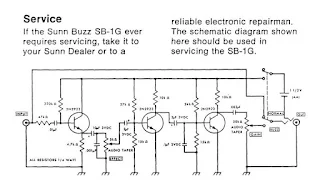

ORIGINAL SUNN BUZZ SCHEMATIC

SUNN BUZZ ON LTSPICE

With effect and gain set to full - gain and effect don't impact the frequency response.
