Aion FX just dropped a few circuit traces today (about eight in total) and this one from Catalinbread caught my eye. It's a standard soft-clipping overdrive up front, not unlike a Tube Screamer, followed by a three-stage active equaliser, which is something I happen to like on a pedal.
As it happens, the EQ section is quite similar to the Pete Cornish CC-1 which it pre-dates by a fair number of years. I also quite like the CC-1.
Link to tracing journal, including schematic.

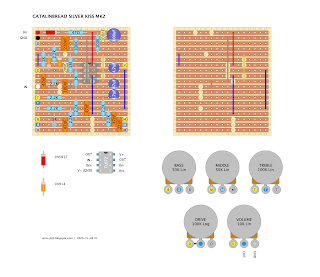

CATALINBREAD SILVER KISS MK2 - VERO LAYOUT
