HAMMOND ENCLOSURES - MAXIMUM VERO & TAG BOARD WIDTHS
Hammond 1590B
Standard vero boardPortrait: 21, possibly 22, with a bit of help from a file
Hammond 1590N1 (125B)
Standard vero boardPortrait: 23
Hammond 1590BB
Standard vero board
Portrait: 33
Landscape: 43
0.15 inch vero board
Portrait: 22
Landscape: 29
Tagboard
Portrait: 13, maybe 14 if you filed it tightly
Landscape: 17

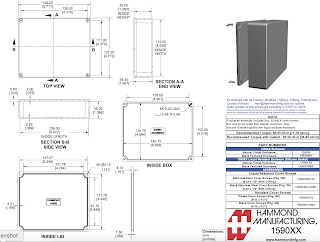

Hammond 1590XX
Standard veroboardPortrait: 44Landscape: 52
WEDGE STYLE ENCLOSURE - MAXIMUM VERO & TAG BOARD WIDTHS
Standard vero boardLandscape: 30 0.15 inch vero boardLandscape: 19, 20 at a squeeze
TagboardLandscape: 12 TONE BENDER ENCLOSURE - MAX VERO & TAG BOARD WIDTHS
Standard vero boardLandscape: 28 flat
0.15 inch vero boardLandscape: 20 flat, up to 22 if on risers (walls slope outwards quite a bit)
TagboardLandscape: 12 flat, 13 on risers
Standard veroboard
Portrait: 44
Landscape: 52
WEDGE STYLE ENCLOSURE - MAXIMUM VERO & TAG BOARD WIDTHS
Standard vero boardLandscape: 30 0.15 inch vero boardLandscape: 19, 20 at a squeeze
TagboardLandscape: 12 TONE BENDER ENCLOSURE - MAX VERO & TAG BOARD WIDTHS
Standard vero boardLandscape: 28 flat
0.15 inch vero boardLandscape: 20 flat, up to 22 if on risers (walls slope outwards quite a bit)
TagboardLandscape: 12 flat, 13 on risers
0.15 inch vero board
Landscape: 19, 20 at a squeeze
Tagboard
Landscape: 12
TONE BENDER ENCLOSURE - MAX VERO & TAG BOARD WIDTHS
Standard vero board
Landscape: 28 flat
0.15 inch vero board
Landscape: 20 flat, up to 22 if on risers (walls slope outwards quite a bit)
Tagboard
Landscape: 12 flat, 13 on risers
