DYLAN159: Bazz Face

There's a massive thread of modded circuits at Free Stomp Boxes by Dylan159 - this one is a Bazz Fuss / Fuzz Face hybrid, suitably called the Bazz Face.

There's plenty more in the thread, including schematics and sound demos.

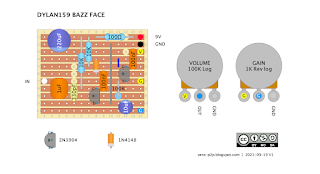

DYLAN159 BAZZ FACE - VERO LAYOUT

DYLAN159 BAZZ FACE - GUITAR EFFECT VERO OR STRIPBOARD LAYOUT

BAZZ FACE SCHEMATIC

Drawn by Dylan

DYLAN159 BAZZ FACE - SCHEMATIC


BAZZ FACE ON THE SCOPE / FFT

caution - start with low levels.


440hz sine wave, probe on the output.  This is with germanium transistors, which looks very much like the silicon ones I tested first.   I changed to a larger fuzz pot for a bit more range.
