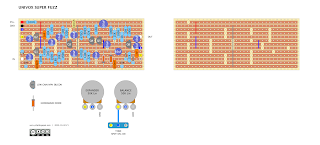

UNIVOX SUPER FUZZ - VERO LAYOUT
Sixties version (grey box)
Seventies version with trimmer (super fuzz on stomp switch)
ORIGINAL UNIVOX SUPER FUZZ SCHEMATIC
SUPER FUZZ LTSPICE ANALYSIS
Octave effect
Frequency response - pre-output stage
Caps
Trimmer
I'd never looked at the 10k trimmer properly until recently. It's a common mod to adjust the amount of octave to account for using unmatched transistors for Q4 and Q5. I'd built pedals using it, and could hear the differences, just never ran it on spice before.
As you can see, the trimmer effects the frequency response and output in certain positions. No doubt a result of less octave being produced.
The trimmer does change the total resistance from the base of Q4 and Q5 from 22k to anywhere in the range of 22k - 32k depending on where you like to set it.
Reduce the 22k resistors to 18k - this way when the 10k trimmer is set to the middle position (5k), the total resistance is 23k, which is closer to the original value of 22k.
Another option is to only have the trimmer on the base of a single transistor, to adjust it to match the other. Same values as above work just fine.
SUPER FUZZ OSCILLISOPE BENCH TEST
These are screen grabs from my oscilloscope. The input signal is a 440hz sine wave, approx 130mv TRMS
This is the output of the first gain stage - which is just a boosted signal that has some clipping already.
The fuzz was sitting on around 50% for all below. I didn't include the output of the long-tailed pair, as it just looks almost the same as the output without the notch filter (I may have even gotten these two images mixed up that are so similar).
This is a reasonably hot signal, I have other Super Fuzz builds where it's still a fairly clean sine wave at this stage.
